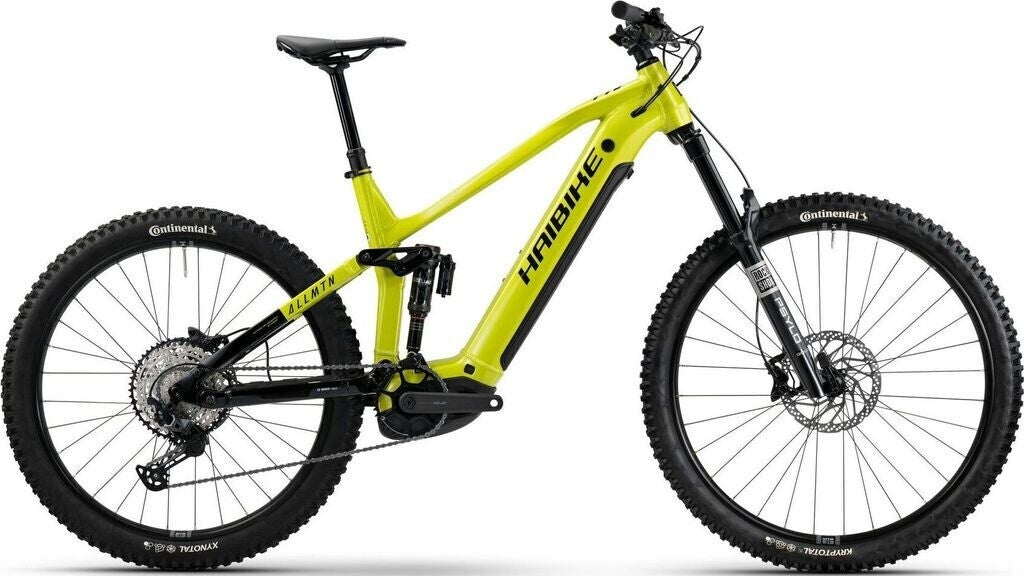

Haibike ALLMTN 6 | Bosch gen 5 | Batt 800w |100N

• Brand: Haibike
• Telaio: Haibike Alluminio, 29″
• Frame shape: MTB Fully
• Model name: ALLMTN 6
• Peso totale consentito: 135
• Frame height:
  • · 41
  • · 44
  • · 49
• Forcella: RockShox Psylo Gold RC 160 mm
• Ammortizzatore: RockShox Deluxe Select+ RT 205x65mm, DebonAir+
• Serie sterzo: Acros BlockLock 135° (S+M) / 164° (L+XL) ZS44/ZS56

Gear shift and brakes

• Cambio: Shimano SLX RD-M7100 12s, Shadow+, 12 velocità, Deore SL-M6100, Rapidfire+, Comando Trigger
• Catena: Shimano M6100
• Brakes: Shimano Deore BR-MT420, Alluminio
• Leva del freno: Shimano BL-MT401, Alluminio
• Guidacatena: Winning Nylon direct mount
• Crank arm: Miranda Crius ISIS Crankarm 160 mm (S+M) / 165 mm (L+XL)

Propulsion

• Motore: Bosch Performance CX, 250W, 25km/h, 85Nm GENERAZIONE 5
• Caricabatterie: Bosch Charger 4A
• Batteria: Bosch PowerTube 800Wh
• Battery capacity: 800
• Display: Bosch Kiox 300 + LED Remote
• Engine manufacturer: Bosch
• Engine torque: 85

Wheels and wheel components

• Cerchio: WTB ST i30 TCS 2.0 32H, Con occhielli, Cerchio a camera vuota

Handlebar and saddle

• Sella: Prologo Proxim W400
• Manubrio: Haibike TheBar++ Dia. 31.8 mm, 780 mm
• Manopole: Velo VLG-1751D2, MTB Grips

Geometry

• Seat tube length: 405, 435, 465, 485
• Seat tube angle: 65
• Head tube length: 130, 135, 140
• Head tube angle: 65
• Chain stay length: 455
• Bottom bracket drop: -20
• Reach: 408, 435, 468, 501
• Seat tube offset: 15
